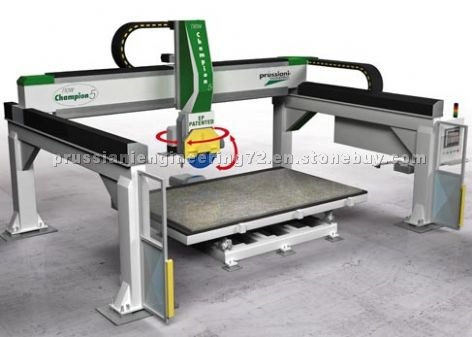

Automatic Bridge Saw New Champion5

• Place of Origin:

   New Caledonia

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1470039

• Place of Origin:

  Italy
• X axis stroke 3.800 / 150 mm / inches
  Y axis stroke 2.500 / 98 mm / inches
  Z axis strok 400 / 16 mm / inches
  X axis top speed 65 / 213 mt / feet per min
  Y axis top speed 65 / 213 mt / feet per min
  Z axis top speed 6 / 20 mt / feet per min
  Disk-holder spindle motor power + tool 25 / 18,5 r.p.m.
  Rotation speed of the tool-holder spindle 0:6.000 r.p.m.
  4th axis head rotation 0° - 370°
  5th axis overturning disk 0° - 90°
  Max. diameter disk 725 / 28.5 mm / inches
  Normalized equivalent sound power in operation 80 dB(A)
  Electronic handweel sì
  Water requirement 30 lt per min
  Compressed air pressure 6 Atm / Bar
  Max. total absorbed power 26.5 Hp / Kw
  Aproximate total machine weight 7.500 / 16.600 Kg / Pounds
  Certification according to EC standards CE
